Here’s Why Companies Are Making the Move to Integrated Enclosure Cooling

As the industrial landscape diversifies and becomes more complex, companies are looking for industrial enclosure and cooling solutions that can make processes simpler, more automated, and more efficient.

Smart automation solutions remove inefficient manual processes that lack visibility and transparency — particularly in the enclosure climate control space — now that integrated enclosure cooling has emerged as a flexible and versatile configuration of enclosure cooling.

Integrated cooling reduces the amount of external equipment necessary to dissipate heat and maintain optimal operating temperatures while providing more targeted, energy-efficient cooling.

Let’s look at a couple of key benefits of integrated enclosure cooling to better understand why companies are embracing this method of enclosure climate control.

Integrated enclosure cooling reduces your BOM and overall automation footprint

Integrated enclosure cooling helps mitigate the complexity of climate control by simplifying your bill of materials (BOM). This helps reduce the number of enclosure cooling units and accessories designers need to specify in order to ensure enclosures operate at peak performance.

Eliminating the number of externally mounted cooling units or accessories helps conserve valuable production room space and makes it easier to leverage cooling in more unique or challenging floorplans. A simplified BOM with a significantly reduced list of part numbers also streamlines and accelerates the process of installing and assembling equipment on the factory floor.

This is an important benefit given market forces like labor shortages and cost — time is money, and integrated enclosure cooling can help save on both.

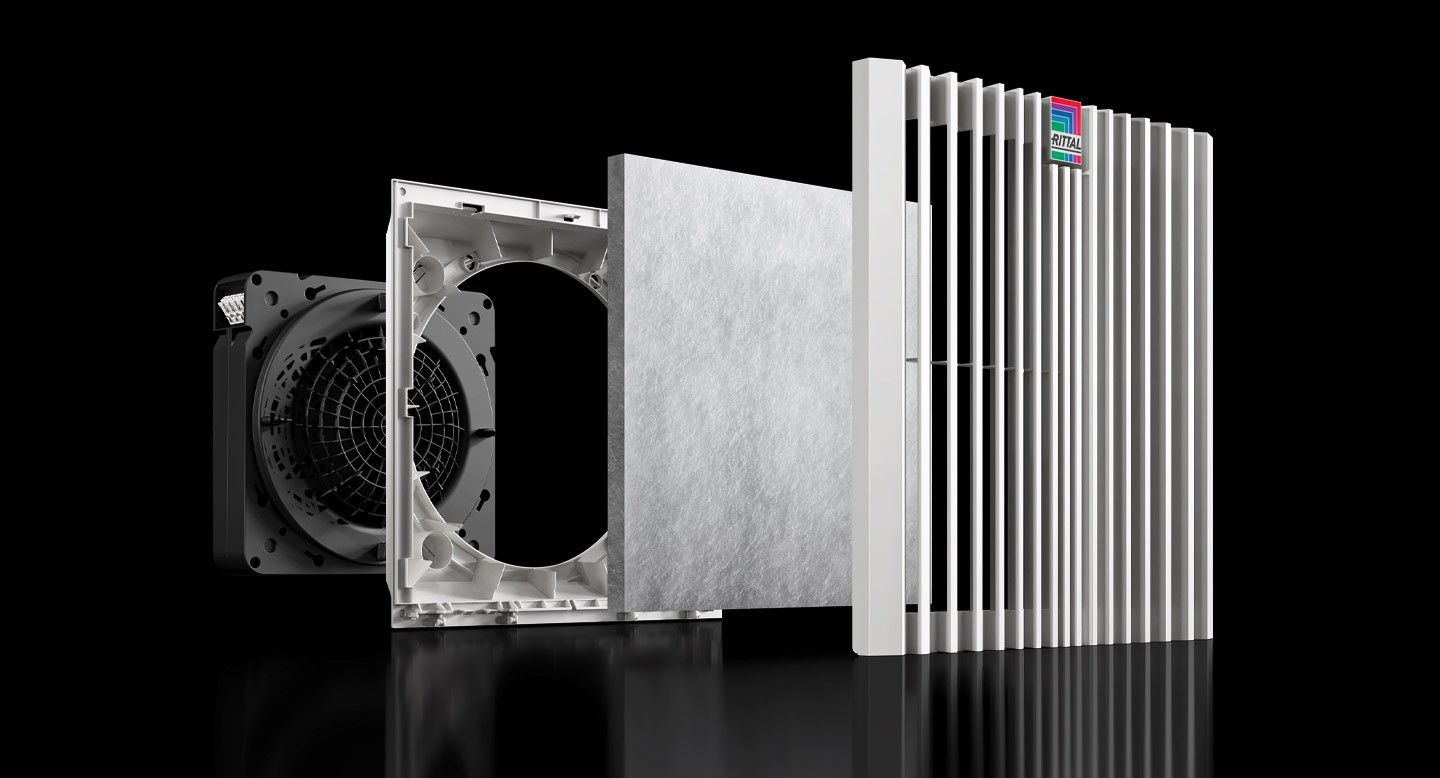

Rittal TopTherm Filter Fan Units with EC technology
Rittal TopTherm Filter Fan Units with EC technology

Integrated enclosure cooling simplifies maintenance and upkeep processes

Most integrated enclosure cooling units use a fan-filter operating model to cool the enclosure and ensure peak performance. Compared to other enclosure cooling solutions, these fans and filters have fewer components and are quicker and easier to service or clean. The simplified design increases application and deployment flexibility while making maintenance and troubleshooting both faster and easier.

The Rittal NEMA 3R Vented Drive Box leverages an easy-to-access, top-mounted design to help accelerate routine maintenance and filter washing. These maintenance tasks can be conducted without the need for specialized tooling to minimize downtime, and filters can be quickly and easily replaced in the event that washing doesn’t quite do the trick.

Integrated enclosure cooling creates more targeted, efficient climate control

Integrated enclosure cooling units use high-performance fans to transfer additional thermal loads away from the enclosure. Not only does this help increase cooling efficiency, but it also helps reduce energy consumption and cooling costs via more direct, consistent cooling.

Fan-filter units help ensure optimal thermal management to prevent overheating and maintain efficient operation. What’s more, top-mounted fan-and-filter units allow for easy access, which makes it faster and easier to modify cooling outputs in real time based on production demands.

The Rittal NEMA 3R Vented Drive Box provides integrated cooling with an adjustable thermostat that comes standard with the enclosure for more precise cooling outputs and energy usage. In addition, the variable configurations of the NEMA 3R Drive Box mean companies can harness the power and cost-saving measures of integrated enclosure cooling in a wide range of applications, from uncontrolled indoor deployments to extreme outdoor sites.

But all this flexibility doesn’t come at the expense of protection and durability. The NEMA 3R enclosure offers superior corrosion resistance, complete with a three-phase surface finish and a silicone gasket to prevent contamination and extend the lifespan of your equipment.

Rittal’s commitment to innovative, efficient enclosure cooling goes well beyond the NEMA 3R enclosure. Our line of enclosure climate control equipment has a solution for every industrial cooling application or deployment, with an eye toward reducing costs, increasing productivity, and elevating sustainability.

Learn more about our industrial enclosure and enclosure cooling solutions.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Brewing Sustainability: How a Coffee Manufacturer Cut Energy Costs by 72%

Introduction

The food and beverage industry relies on innovative solutions to remain energy-efficient and sustainable. At a renowned coffee manufacturer’s research and production facility, cutting-edge solutions are continually explored to support advanced product development. The facility, which has optimized processes like freeze-drying roasted coffee, partnered with Rittal to address the energy challenges associated with enclosure cooling.

The Challenge

The coffee manufacturer’s research center required a solution to address the exploitation of energy in cooling while reducing CO2 emissions. With the facility’s focus on innovation, identifying a technology that combined efficiency and reliability was paramount. The goal was to integrate a more sustainable solution while cutting energy costs. Thankfully, Rittal had the perfect solution for the situation.

The Rittal Solution

Rittal proposed a year-long comparative test of the in-service Blue e cooling units and the enhanced Blue e+ cooling units, which are currently the most energy efficient thermal solutions on the market. Both units were mounted on identical Rittal enclosures already in operation at the facility. During the test, Rittal provided the Blue e+ cooling unit, measurement protocols, and monitoring devices. Results demonstrated a 72% reduction in power consumption with the Blue e+ unit, all thanks to a hybrid cooling approach that combines speed-controlled compressors and innovative heat pipe technology. The system’s advanced design ensures optimal cooling capacity, energy efficiency, and seamless digital monitoring, meaning that the temperature inside the enclosure remains steady and consistent without large spikes and valleys of energy usage.

Energy efficiency for coffee manufacturing

The Results

The impressive 72% reduced energy consumption not only helped the coffee manufacturer significantly lower energy costs but also contributed to their sustainability goals by reducing CO2 emissions. By implementing advanced cooling technology, the manufacturer transformed their operations beyond what is possible with other leading solutions on the market. Additionally, the Blue e+ unit’s digital interfaces enabled real-time data access and fault alerts, ensuring improved system reliability over time.

Conclusion

“We are always motivated to help genuine innovations make a real breakthrough,” said the project manager for the coffee manufacturer. By leveraging the advanced capabilities of the Rittal Blue e+ cooling system, the coffee manufacturer achieved its goals of energy efficiency, sustainability, and operational cost reduction for many more years of excellent brews.

Contact Rittal for Energy-Efficient Solutions

Are you seeking a more sustainable and cost-effective cooling solution for your facility? Explore how Rittal’s advanced cooling technologies can optimize your operations. Contact us today to learn more about how you can optimize your processes, from engineering to operations and maintenance.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Thinking Outside the Box: Why Energy-Efficient Enclosure Climate Control Units Are Important For Food and Beverage Manufacturers

Industry spotlight

Poultry has been one of the food and beverage industry’s biggest growth areas in recent years, and projections indicate this growth shows no signs of slowing down — in fact, a recent report estimates the poultry market will grow by more than 6% annually through 2028.

This is just one example — pet food and plant-based foods being a couple others — of why food and beverage producers need to unlock new levels of productivity and efficiency to meet customer demand and seize opportunities in new or emerging markets.

While much of the discussion around optimized efficiency in the food and beverage automation space revolves around specifying industrial enclosures specifically designed to support high hygienic standards, energy-efficient climate control units play an important role in helping manufacturers create more precise, targeted cooling while reducing their energy usage and costs.

With this in mind, let’s look at a couple of reasons why design engineers should consider energy-efficient enclosure climate control units when designing an automation infrastructure for food and beverage manufacturing sites.

Energy-efficient enclosure climate control units help manufacturers facilitate more diverse production lines

The food and beverage industry is an increasingly diverse playing field with the continued growth of plant-based meat alternatives, dairy-free milk, gluten-free snacks, and a variety of other product categories. The rise in popularity of these kinds of products is pushing more traditional food and beverage producers to launch their own plant-based or dairy-free options while still maintaining production volumes of their existing products.

What complicates the matter even more is that much of this production happens concurrently in the same facility, and because these products require their own distinct production lines, manufacturers are tasked with designing cooling systems that can adequately cool several production lines while also offering configuration flexibility and reducing a producer’s automation footprint.

Rittal’s new Blue e+ S smart enclosure cooling unit provides superior deployment flexibility with precise, highly targeted cooling outputs to keep enclosures operating at optimal temperature levels. Lower output categories of .3 kW, .5 kW, and 1 kW help manufacturers reduce their energy consumption and costs, and the use of innovative heat pipe and inverter technology eliminates the need for a compressor or expansion valve, which significantly cuts the amount of energy necessary to operate the unit — in fact, the Blue e+ S can reduce overall energy consumption by 75%.

The first step in better understanding the kind of cooling unit infrastructure necessary to facilitate multiple production lines is evaluating your current climate systems in order to identify potential deficiencies or liabilities. With a Rittal climate control efficiency analysis, manufacturers can increase the efficiency of their cooling systems by consolidating the number of cooling units — all without sacrificing performance or cooling output.

Energy-efficient climate control units help food and beverage manufacturers better align with sustainability initiatives

A survey conducted last year by the International Data Corporation found that 40% of food and beverage manufacturers said sustainable manufacturing was a top priority. The rise of sustainability as a top-level concern among manufacturers mirrors the importance and value consumers put in more eco-friendly manufacturing processes, and the dovetailing of these two creates some game-changing opportunities for manufacturers to use natural resources like energy in a more efficient, strategic way.

One way food and beverage manufacturers can reduce their impact on the environment is eliminating the use of harmful components or chemicals commonly used in industrial cooling units — in fact, the elimination of environmentally damaging chemicals as a means of reducing your overall carbon footprint is a large component of the new UL/CSA 60335-2-40 Standard, which is currently active and will be mandated for products certified to UL 1995 after January 1, 2024.

The engineering innovations that make up the Blue e+ S significantly reduce carbon emissions in part by using a refrigerant with a Global Warming Potential (GWP) that is 56% lower than those used in comparable cooling units to minimize carbon dioxide emissions.

Rittal’s Blue e+ S line of enclosure cooling units are also built upon a fully-integrated IIoT interface that allows for digital monitoring and condition reporting to help manufacturers better understand the state of their cooling units on a 24/7 basis.

Remote monitoring, cooling unit alerts and notifications, and user-friendly LED displays make it easier than ever before to adjust the temperature of your cooling unit based solely on the amount of cooling required, and this real-time flexibility helps you eliminate energy waste and align with consumer expectations and compliance on sustainability.

Bonus: Our energy-efficient enclosure cooling units can help enhance and support the sanitation of your production facility

Who says you can’t specify energy-efficient enclosure cooling units that also support increased sanitation and hygiene in your food and beverage production facility? With Rittal enclosure cooling units, industry-leading cooling efficiency and elevated sanitation are at your fingertips.

Our Blue e+ cooling unit can not only help you reduce your energy costs by up to 75%, but hose-proof hoods also provide increased protection from the ingress of water or chemicals used during intense, regular washdowns. The hood design of the Blue e+ also helps reduce the likelihood of liquid pooling, which can be a breeding ground for bacteria and contamination.

What’s more, our air-to-water heat exchangers come standard with a 30° angled roof design, water-resistant and joint-free seals, water connection flexibility, and smooth external surfaces to reduce dust buildup, which is a common challenge in food and beverage facilities that process nuts that are used in dairy and meat-free products.

Not only can Rittal help food and beverage manufacturers think outside the box when it comes to designing automation systems for food and beverage facilities, but our enclosure cooling units are designed to help food and beverages companies adopt a more energy-conscious approach to manufacturing while also optimizing their processes.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

4 Applications that Benefit from LCP DX-Based Liquid Cooling

Guest Contributor, Herb Villa, Rittal

Liquid cooling of IT equipment, now at the row level instead of for an entire white space, is gaining momentum in the distributed data center world, where the demand for efficiency in cooling higher density racks is making IT professionals rethink their reliance on traditional methods. Various liquid cooling technologies – direct-to-chip, immersion, direct expansion and others – are winning favor in the different IT spaces. Why? Because they bring heat removal closer to the equipment, require little if any changes to infrastructure, and are easy to scale as demand grows; when you need to add more racks, additional cooling capacity is achieved with the cooling systems supporting increased IT enclosures.

Liquid cooling is especially advantageous for small and medium-sized businesses that have on-premise servers mounted in one or more enclosures. Many of the IT professionals supporting these organizations are forced to put these in some remote, out-of-the-way space within the building, assuming (wrongly) that as long as the building’s HVAC system has a vent terminating in that room, cooling the equipment won’t be a problem.

But we’ve seen that “comfort cooling,” which is the job of a facility’s HVAC system, isn’t adequate for server rack cooling and the demands of heat-generating IT equipment. Those demands are non-negotiable: precise temperature and humidity control, and proper airflow to get the heat away from the equipment.

Focusing on just a few different market sectors can illustrate the demands of the new IT environment. Hospital & healthcare, schools, factory floor, distribution centers are all examples of the types of organizations and facilities often forced to utilize spaces never intended to support the climate control needs of IT equipment: unused offices, janitors’ closets, corners of basements, etc. And because all rely on data to run their businesses, they’re all at risk of system failure because they aren’t addressing the critical climate needs of their IT investments.

Enclosure Climate Control in Hospitals

Data is critical in ensuring quality patient care and the smooth, efficient performance of even the smallest healthcare facilities. Hospitals, clinics and physician practice groups rely on IT equipment to store and transfer data among departments, achieve operational efficiency and maintain compliance using enterprise resource planning (ERP) systems. Without proper temperature, humidity and airflow control, the IT equipment that processes and stores necessary data could fail, and the cost of downtime and potential lost data is immeasurable.  There is also extremely limited space to place these systems; after all, the main business of a hospital is patient care, not IT.  Especially today in the midst of a global pandemic, healthcare facilities must maximize space for their patients, not their IT appliances.

Data Center Cooling in Education/School Campuses

What happens when a school’s “comfort cooling” system can’t keep up with all the heat being generated by the server room’s IT equipment (if they are lucky enough to even have such a space)? These systems are intended to keep humans comfortable, not maintain the precision and optimal air flow needed to remove heat generated by the IT equipment. Schools rely on IT equipment to help maintain productivity, organize data, and reduce time and effort of work that would otherwise be manual. Servers and processors enable insights that help administrators allocate the right resources to the right areas at the right time, connect campuses and departments, and speed communication between students, teachers, administrators and parents. And as with the healthcare sector, COVID-19 has placed enormous demands on bandwidth and compute capability as school systems have become virtual classrooms supporting remote learning applications and programs. This means more equipment, more heat, and less available installation space.

Server Rack Cooling in Manufacturing

Manufacturing facilities represent some of the most uncontrolled environments in which to place IT equipment. Wide temperature ranges, dust, debris, moisture and corrosive elements are all enemies of smooth factory floor operations, and because there is often no dedicated IT room (or at least one designed for IT), the risk of equipment degradation and failure is very real. Manufacturing organizations rely heavily on manufacturing execution systems (MES) and ERP systems for visibility into all aspects of the supply chain and production, and for seamless integration between the shop floor and Billing, Sales, Operations, HR and other departments.

Climate Control Units in Distribution

Distribution warehouses are notorious for having subpar climate control: they’re often either too hot or too cold; when air conditioning is running, cold air is “dumped” to the floor and doesn’t mix with warmer air near the ceiling (and the opposite situation when the heat is running); air flow throughout the building is almost impossible to control; and air leaks from the inside to outside and vice versa are common. Imagine, then, the effect of a poorly controlled climate in a small room where heat is being generated.

Like manufacturing, warehousing and distribution rely on up-to-date information about inventory, customers (through a CRM tool), fleet management, marketing, shipping and more. When equipment is compromised by temperatures that are too high (and in some cases too cold), all the data that’s used to ensure optimum facility and system performance is at risk for failure.

The best solution for cooling racks for these types of organizations is one that’s similar to a building’s own AC – one that uses direct expansion (DX). Heat removal is achieved with a compressor / condenser refrigeration cycle to reach and maintain a setpoint temperature and humidity level but that is designed to work at the cabinet (sometimes called enclosure) level.

Rittal’s DX-based solution (part of the Liquid Cooling [LCP] family of products) is ideal for businesses, like those above, that have “mission-critical” data needs but less-than-ideal data room options. The close coupled LCP DX 20kW provides a single or multiple IT enclosures with up to 20kW heat removal capacity, available in both closed loop rack and open loop inline options. Some of the benefits of this solution include:

  • A small footprint, making it appropriate for nearly any location within the building
  • Precise temperature and humidity control that responds to varying equipment heat loads
  • Local climate control – airflow is provided to one or more cabinets in a closed system, or cooling to the entire space in an open airflow configuration
  • Simple maintenance – tool-less fan replacement, easy-to-access electrical connections and remote notification of all operational parameters
  • Redundancy – up to 8 units can be interconnected, with coordinated air flow, alarms, and time-of-day operation
  • Reduce the need for a dedicated room to support IT equipment.  With proper planning and physical security, it is possible to place these systems out on the floor or shared space. The costs to build and maintain a dedicated IT room are eliminated

LEARN MORE ABOUT OUR 20kW LCP RACK AND INLINE DX

Today, every organization, no matter the size or industry, relies on optimum IT equipment performance in order to meet its ongoing operational demands. If yours is putting rack cooling needs at the mercy of your building’s HVAC system, the risk of system downtime is very real, and the potential cost to operations significant. The best protection against system failure is to utilize IT cabinets with liquid cooling capabilities that offer precise control of temperature, humidity and airflow – all critical factors when it comes to ensuring that your organization’s work is never disrupted.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

IT Equipment Cooling: Why Your HVAC System Is a Poor Climate Control Unit

Guest Contributor: Herb Villa, Rittal

IT Managers working in small and mid-sized businesses often find themselves searching their buildings for unused space to house the company’s IT enclosures. Mail rooms, empty offices, janitors’ closets…all have been repurposed into data closets holding one to a few racks. This approach may be the right choice in terms of square footage needed, but when it comes to proper climate conditions for sensitive IT equipment, it could not be more wrong! At best, these spaces are cooled using only the building’s AC system. At worst? An open window.

A building’s existing air conditioning system (or combined heat and air conditioning system) is designed to create comfortable environments for employees – the reason they’re sometimes referred to as “comfort systems.” When IT racks need to be placed somewhere on site, it’s thought that “any old room” will do because AC ductwork usually terminates in these spaces. But the reality is that even if you were to add ducts to supplement the building’s AC, relying on a system designed for humans is not a good solution for IT equipment.

Server rooms need more targeted cooling to keep the temperature within a specific range and prevent the servers from overheating. According to ASHRAE (the American Society of Heating, Refrigerating and Air-Conditioning Engineers), the appropriate temperature range for server rooms is between 64.4 and 80.6 Fahrenheit. This requires a discrete cooling solution capable of monitoring and managing the temperature of both the equipment and the room. The same cooling system must also be capable of regulating humidity within the precise margins required by sensitive equipment. Finally, building HVAC will not provide sufficient air flow volume for heat removal from installed appliances; the CFM requirements for comfort cooling are significantly lower than airflow required to remove heat from the IT devices.

Five Enclosure Climate Control Challenges

Still think your building AC is up to the task? Here are some of the hidden risks you will be vulnerable to:

  • Contaminants. A repurposed space can be exposed to airborne dust, gasses and moisture that seep into the room and compromise the quality of the air and the performance of the equipment; these may not be adequately removed from the room using only the existing AC.
  • Reliability/redundancy. Even a short interruption in power supply to computer equipment can lead to loss of data, and the same is true for interruptions in cooling. Most buildings do not have redundant cooling in place and often an AC system breakdown can last hours – a costly risk for IT equipment.
  • Comfort systems cycle on and off. The temperature in the closet will decrease when the cooling system is on and increase when it is off, resulting in temperature swings throughout the day that can stress the equipment more than a consistent higher temperature.

And the issue isn’t only related to daily temperature swings, but more sustained periods that put the equipment outside the zone. Comfort cooling systems are often programmed for higher temperature setpoints on weeknights and weekends to conserve energy. The average temperature within a server closet will generally increase by the amount the temperature set point is increased.

  • Combined heating and cooling HVAC systems deliver heat in winter. The same ductwork that supplies cool air to the IT closet in warmer months will deliver heated air in colder months. This almost guarantees overheating of the equipment and increases the risk of equipment failure.
  • Inability to scale. Every kilowatt of power used by the IT equipment creates a kilowatt of heat that must be removed. If you were to add an additional rack and more equipment, the existing HVAC system would be even less capable of maintaining the ideal temperature.

The Solution for Your Climate Control Unit Needs

So, what is the best option for supporting mid-size installations and 10-30kW thermal loads in a small space? A liquid cooling solution is one of the most effective options for data closets, IT rooms and other confined spaces that would otherwise rely on a building’s HVAC system. One of the best is Rittal’s LCP DX 20kW – an enclosure cooling solution adaptable to a variety of applications and locations. The LCP DX provides 20kW of cooling capacity and is available in closed loop Rack and open loop Inline options. The closed loop configuration maintains rack temperatures completely independent of room conditions; the open loop option maintains a constant room temperature, cooling the rack equipment as well as other equipment that may be in the room.

LEARN MORE ABOUT OUR 20kW LCP RACK AND INLINE DX

The LCP DX 20kW is a server rack cooling solution with the features that make it ideal for repurposed spaces – and limited staff:

  • A small footprint
  • Easy to maintain (tool-less fan replacement; easy access electrical connections)
  • Precise climate control (set point temperature is maintained as heat loads vary)
  • Ongoing monitoring (remote notification)
  • Variable capacity (follow heat load variations from 5 to 20kW)

Learn more about your data center cooling options by reading our white paper, “Data Center Cooling: 4 Effective Types of Liquid Cooling.” In it you’ll find valuable information about why liquid cooling is becoming the go-to choice for data centers of all sizes, and 4 of the best options for different scenarios.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Understanding Hygienic Zones

Guest Contributor: Rittal

In any facility that processes food, beverages or pharmaceuticals, cleanliness is the absolute top priority. To avoid product contamination and bacteria growth, these facilities have strict cleaning requirements that include the use of aggressive cleaning agents and high-power spray wash downs. In order to protect the critical components for these processing lines, enclosures, accessories and equipment must be specified properly and meet facility requirements including IP69K,

Because of the variations in processes and practices in each section of these facilities, the cleaning and equipment requirements will vary by each hygienic zone. The infographic below defines the Basic, Medium and High Hygiene zones as well as outlines what specific considerations you should keep in mind for specifying systems and enclosures.

Hygienic Zones

Hygienic Zones Infographic

When specifying equipment for hygienic zones, look specifically for hygienic designs. For more information on selecting control panels and HMIs in these facilities, check out our article in Machine Design Magazine. Additional design guidance for food and beverage facilities can be found by downloading the Food and Beverage Handbook.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

The Factory of the Future, Today: How IoT-Enabled Climate Control Makes Plants Smarter

Automation is a target that many in the industrial sector are chasing. However, converting existing facilities into smart facilities can be a costly and time-consuming undertaking.

For a company to implement smart manufacturing, its machinery and equipment must be able to communicate with each other and across a network. Many in the industry are beginning to invest in steps toward automation through integrating sensors into their equipment and investing in IoT-ready machines and devices, even if they aren’t ready to put them online yet.

In order to fully integrate with IIoT (the Industrial Internet of Things) and the factory of the future, climate control units must also be brought online for remote monitoring and integration into IoT systems. For this, cooling units must either be replaced or retrofitted.

New Solution for IoT Connected Cooling: Retrofit

For many plant managers, the push towards automation means investing significant amounts of money in new connected devices. However, another option exists for enclosure cooling systems: Retrofit.

The practice of retrofitting your existing cooling systems for IoT connectivity wasn’t previously an option but using newly available adapters certain existing units can be connected. These adapters connect cooling via common plant protocols such as TCP/IP, OPC UA, Modbus an

Taking a retrofit approach allows all of your systems to “talk” to each other so you can ensure they are performing properly. Real-time monitoring of equipment enables alerts to be sent out, allowing you to get systems back online as quickly as possible to minimize costly downtime for your plant. Tracking data from cooling systems allows plant managers to confirm when equipment is running correctly, determine the hours in use and establish regular maintenance and inspections to keep cooling units running at optimal performance. When your climate products are running correctly, the rest of your sensitive equipment and controls can keep your plant smart.

When to Replace Rather than Retrofit

Retrofitting is the most cost-effective way to bring your climate control solutions online with your smart plant’s systems. However, retrofitting may not always be the best option depending on your current equipment. When should you replace cooling units rather than retrofit them?

  • If your equipment is too old. Assess the age of your equipment, if it is more than five to seven years old, consider upgrading to newer, more efficient and IoT-enabled equipment.
  • If your utility provider is offering incentives for installing more efficient equipment. Upgrade incentives vary based on timing and location, so if you’re considering an upgrade, check with your utility providers to see if there is a current or upcoming rebate program.
  • Was your equipment wasn’t specified appropriately in the first place? One of the most common mistakes when specifying climate control units is installing undersized units. If your current units aren’t performing as they should, consider upgrading.
  • If you’ve upgraded your drives and devices inside the enclosure but not your cooling unit. As drives and PLCs get smaller and smaller, plants will sometimes upgrade the contents of the enclosure, but overlook the climate control unit. If you can replace two drives with four or five, they may be more efficient than the older ones and less energy-loss, but the aggregate heat generated may have increased, meaning your climate solution may not be able to keep up.
  • If your equipment has failed. Obviously, if your unit has failed, it should be replaced rather than retrofitted.

The Rittal Solution for Retrofit

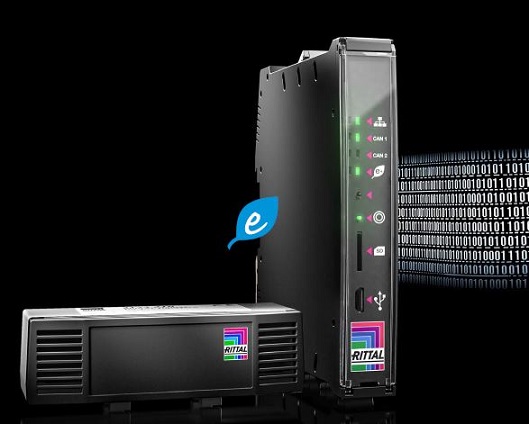

Rittal recently launched an adapter for its Blue e cooling units that, when installed, ensures the units can link up to smart condition monitoring and IoT systems. The adapter can be used to set up condition monitoring for up to ten cooling units in a master/slave arrangement. It is compatible with all wall- and roof-mounted NEMA 12, 3R/4, and 4X rated Blue e units that employ the Comfort Controller. Combining the IoT Interface with the IoT Adapter, Blue e cooling units may be integrated into higher-level systems. The whole system can be configured and commissioned via the web server– quickly, conveniently and without the need for any programming.

Learn more about the adapter for retrofitting your climate solutions for IoT, check out the brochure. To read more on IoT and climate control, visit IoT-enabled Climate Control is Changing the Game.


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Essential tips for Temperature Management in the Food Industry

Guest contributor:  Karl Lycett, Product Manager for Climate Control, Rittal

Food processing is a sector that demands very high standards of efficiency to meet daily production throughput targets.  Any unexpected breakdown of critical components which stops production lines can have a major impact, not just in terms of loss of output, but also unplanned maintenance.

Electrical componentry is protected by an enclosure which is designed to protect the equipment from the ambient environment and create a secure atmosphere in which the climate is maintained within the required parameters.

As the temperature rises due to the summer months or random heat waves throughout the year, these parameters can be breached. In turn, the overall life of the componentry within the enclosures can reduce and the probability of an unexpected system failure increases drastically.

Care needs to be taken when implementing climate control equipment to ensure it is suitable to handle the rigours of the environment in which it is situated.

Below are some key aspects to consider when reviewing your climate control solutions.

Is your solution right for the environment?

The type of product being processed on-site and/or the location of the equipment within the facility are likely to heavily influence your climate control solution.

  1. If the ambient temperature of your facility remains lower, year-round, than the desired enclosure internal enclosure temperature then fan-and-filter units and air-to-air heat exchangers can be very effective. They use the ambient air to remove heat energy from the enclosure, releasing it back into the environment.If the ambient temperature rises above the desired internal temperature then units with active cooling circuits must be used. Wall/roof-mounted cooling units and air-to-water heat exchangers include a refrigerant to remove the excess heat from enclosures and maintain the desired conditions.

    Already in 2018 we have seen unexpected jumps in average temperatures across the country, and this will only increase as we move into the summer months. These jumps, as I’ve indicated, are what put cooling equipment under the most strain, therefore reviewing existing equipment sooner rather than later can reduce the likelihood of unexpected breakdowns.

  1. Dusty or acidic contamination (e.g. flour or yeast/vinegar extracts) can interfere with switchgear and cause short circuits or a reduction in service life.

HD 2

Applying filter mats to fan and filter units will help, but if the environment is extremely contaminated you might be better off installing a cooling unit to ensure that the internal and external air-paths are exclusive thus ensuring contaminated air isn’t drawn into the enclosure.

Cleaning/Maintenance Regime

Establishing a regular inspection and cleaning of cooling equipment is very good practice.  For example, vacuum cleaning units with filter mats to remove any dust and debris which might choke the fan. The will mean the unit works harder for longer and also reduces its cooling capacity.

Cooling units must also be kept clean to maintain the highest standards of hygiene. Some will be cleaned daily with pressure washers and jet steam cleaners in which case use units which meet the required ingress protection rating desired for your site and purchase additional cowls or covers as needed.

Increasing Energy Efficiency = Reduced Costs

Many food production facilities work around the clock and with energy prices rising globally, it’s vital to get early warning of any potential issue which could impact on productivity or costs.

For example, unlike speed-controlled cooling devices, such as the new Rittal Blue e+ cooling units, conventional units start when the temperature inside the enclosure gets above set point (normally 35°C) and finish when the shutdown temperature of  30°C is achieved (at a typical hysteresis of 5K).  If the device does not reach the shutdown temperature it will continue to operate at full output, using large amounts of energy.  This is one good indicator that the unit is inadequate for the job and that too little cooling air may be getting to electrical components.

The best course of action in all instances is to undertake a survey of your existing cooling equipment utilising the points above.

HD 1

Rittal is happy to offer you a free RiAssure Cooling Inspection in which one of our trained representatives visits your site to provide you with honest, clear advice on your existing equipment and its suitability within the chosen environment/process.

We will then provide you with a short report which includes feedback on the next best steps forward for your installation, whether it is implementing a maintenance contract to prolong the life of existing equipment or the replacement of units that are undersized to improve performance and increase the energy efficiency of your site.

Learn more:  https://www.rittal.com/us-en/content/en/start/


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Modular Enclosure Accessories Improve Customization and Scalability

Guest Contributor: Rittal Enclosures

5 accessories to enhance TS 8 enclosure functionality

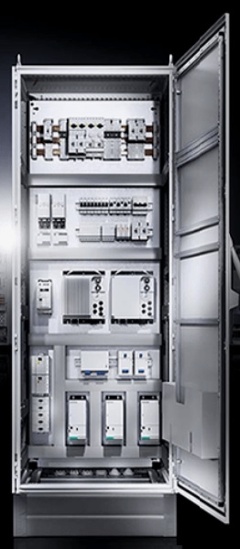

ts8

With 12 million units sold around the globe, the TS 8 modular enclosure is established as the worldwide-standard. As businesses grow and enclosure needs evolve, many customers are turning to a variety of accessories to scale their solutions.

These five accessories for lighting, power distribution, viewing and operating, climate control, and assembly are the most popular customizations design engineers and facilities managers are utilizing to maximize their investments.

1 – For Lighting: LED Compact Lighting System

The Rittal LED Compact Lighting System is a safe, energy-efficient, extra-low-voltage interior lighting solution that delivers full coverage to all corners of the enclosure.

Enterprise-ready and suitable for voltages ranging from 100–240 V (AC) and 24 V (DC), the LED system can be installed tool-free with clips that connect to a latch-in hook pattern—though optional screw fastening is also available. Magnetic installation is another option, for free positioning within the enclosure. Whichever assembly option you choose, motion detectors or door-operated switches for hands-free illumination are also available.

2 – For Power Distribution: RiLine Busbar System

In many regions around the world, busbar systems are the predominant solution for managing power needs now, and in the future. For engineers not familiar with the technology, the RiLine copper busbar system provides reliable power distribution and requires less panel modification, contact points, and wiring work. Busbar systems save space and time for panel builders and offer more contact hazard protection than other cable management options.

3 – For Viewing Windows and Operating Panels: WKDH Deep Hinged Window Kit

The Deep-Hinged Window Kit is ideal for installing a viewing window where access to components mounted behind it is required. It is designed to protect HMI displays and components mounted on enclosure panels from wash-downs, rain, snow, sleet, dirt, and dust. The window depth allows for extra-deep pushbuttons (~2”/50mm) and comes with a full-size drill template for easy mounting.

4 – For Climate Control: TopTherm Filter Fans

Simply and efficiently manage air flow in your enclosure with filter fans designed for tool-free, snap-in mounting and installation. The TopTherm filter fan’s new diagonal fan technology creates greater pressure stability and constant airflow when installed, even with a contaminated filter mat. This new technology also allows air currents to spread diagonally from the fan, promoting even circulation throughout an enclosure.

5 – For Base Assembly: Flex-Block Base/Plinth System

Save assembly time with high-strength plastic corner pieces that clip together base/plinth components. With this system, enclosure transport is uncomplicated, both empty and fully-configured, by removing the base/plinth trim panel. Plus, cable management is straightforward and efficient, saving space for enclosure configuration.

Modular Enclosure Buyers GuideRittal Is Engineered Better

Whatever your enclosure needs, Rittal has an extensive line of accessories to optimize enclosure functions. Download the Modular Enclosure Buyer’s Guide to see how Rittal products are better than the competition!


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Balancing the Value of Air-to-Air and Air-to-Water Heat Exchangers

Guest contributor: Eric Corzine, Product Manager Climate Control, Rittal

Heat exchangers provide highly efficient cooling for electrical components. As energy costs increase, they are getting more consideration by system designers. Before making a design decision between air-to-air and air-to-water heat exchangers,  it is important to weigh installation considerations and use-cases. Here, we have provided an overview of each technology to help you determine which can best impact your equipment and your bottom line.

Air-to-Airsirair

Air-to-air heat exchangers are the most common type of exchangers. They work by utilizing the difference between the hotter internal temperature of an enclosure and the cooler, ambient air temperature. Engineers can implement air-to-air exchangers in a variety of industrial environments, including food and beverage, waste and wastewater, and automotive.

Air-to-air exchangers can utilize existing airflow patterns, through convection or forced air, and do not require additional accessories or equipment. The technology can utilize the airflow within an enclosure or can connect to existing ductwork and HVAC systems.

There are some limitations to air-to-air heat exchangers, particularly in the climates they could be installed. For instance, if the difference between indoor and outdoor temperatures is to great then the effectiveness of the exchangers can be significantly reduced. Recent technology upgrades, however, have made air-to-air exchangers functional even in climates that reach temperatures of -13°F.

These factors make air-to-air heat exchangers useful in applications where plumbing for liquid cooling would be difficult to install, and where existing air flow patterns and equipment layout allow for effective cooling. Often, this means situations with moderate thermal loads. HVAC engineers can install them quickly as well, which reduces setup time and costs. However, they are still less efficient compared to air-to-water exchangers because air is not as effective at transferring heat as water.

Air-to-Waterairwaterdownload (6)

Air-to-water heat exchangers use the same principle of temperature differential to provide heating or cooling, however, they alter the temperature of air by forcing it across water coils.

Because of the efficient heat transfer capabilities of water, they can help reduce energy use and utility costs significantly. This is especially useful in situations with large thermal loads, such as IT mainframe applications or an automotive manufacturing environment where water is already available.

One of the drawbacks of air-to-water heat exchangers is the need to pipe water to the unit. The technology requires plumbing and a reliable water supply or recirculation system, which often means pumps, valves, and other accessories.

These plumbing concerns often mean higher installation costs, so engineers need to balance the initial cost with the expected savings over the lifetime of the exchanger. Overall, air-to-water exchangers are useful for high-demand, energy intensive applications.

Making the Right Choice

It is important to consider the right exchanger for your specific climate control situation. The ultimate decision will balance installation and operational costs, target cooling capacity and thermal loads.

Air-to-air exchangers can get up and running quickly and engineers can integrate them into many different kinds of applications easily. Air-to-water exchangers deliver better efficiency and can suit more energy-demanding applications, but they require plumbing and water supplies, which may not always be available. The ultimate choice, then, should consider these factors and engineers should thoroughly research both types of exchangers to understand which one will best suit their application.

Learn more about climate control at Rittal.com

About Us


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.
