IT Equipment Cooling: Why Your HVAC System Is a Poor Climate Control Unit

Guest Contributor: Herb Villa, Rittal

IT Managers working in small and mid-sized businesses often find themselves searching their buildings for unused space to house the company’s IT enclosures. Mail rooms, empty offices, janitors’ closets…all have been repurposed into data closets holding one to a few racks. This approach may be the right choice in terms of square footage needed, but when it comes to proper climate conditions for sensitive IT equipment, it could not be more wrong! At best, these spaces are cooled using only the building’s AC system. At worst? An open window.

A building’s existing air conditioning system (or combined heat and air conditioning system) is designed to create comfortable environments for employees – the reason they’re sometimes referred to as “comfort systems.” When IT racks need to be placed somewhere on site, it’s thought that “any old room” will do because AC ductwork usually terminates in these spaces. But the reality is that even if you were to add ducts to supplement the building’s AC, relying on a system designed for humans is not a good solution for IT equipment.

Server rooms need more targeted cooling to keep the temperature within a specific range and prevent the servers from overheating. According to ASHRAE (the American Society of Heating, Refrigerating and Air-Conditioning Engineers), the appropriate temperature range for server rooms is between 64.4 and 80.6 Fahrenheit. This requires a discrete cooling solution capable of monitoring and managing the temperature of both the equipment and the room. The same cooling system must also be capable of regulating humidity within the precise margins required by sensitive equipment. Finally, building HVAC will not provide sufficient air flow volume for heat removal from installed appliances; the CFM requirements for comfort cooling are significantly lower than airflow required to remove heat from the IT devices.

Five Enclosure Climate Control Challenges

Still think your building AC is up to the task? Here are some of the hidden risks you will be vulnerable to:

  • Contaminants. A repurposed space can be exposed to airborne dust, gasses and moisture that seep into the room and compromise the quality of the air and the performance of the equipment; these may not be adequately removed from the room using only the existing AC.
  • Reliability/redundancy. Even a short interruption in power supply to computer equipment can lead to loss of data, and the same is true for interruptions in cooling. Most buildings do not have redundant cooling in place and often an AC system breakdown can last hours – a costly risk for IT equipment.
  • Comfort systems cycle on and off. The temperature in the closet will decrease when the cooling system is on and increase when it is off, resulting in temperature swings throughout the day that can stress the equipment more than a consistent higher temperature.

And the issue isn’t only related to daily temperature swings, but more sustained periods that put the equipment outside the zone. Comfort cooling systems are often programmed for higher temperature setpoints on weeknights and weekends to conserve energy. The average temperature within a server closet will generally increase by the amount the temperature set point is increased.

  • Combined heating and cooling HVAC systems deliver heat in winter. The same ductwork that supplies cool air to the IT closet in warmer months will deliver heated air in colder months. This almost guarantees overheating of the equipment and increases the risk of equipment failure.
  • Inability to scale. Every kilowatt of power used by the IT equipment creates a kilowatt of heat that must be removed. If you were to add an additional rack and more equipment, the existing HVAC system would be even less capable of maintaining the ideal temperature.

The Solution for Your Climate Control Unit Needs

So, what is the best option for supporting mid-size installations and 10-30kW thermal loads in a small space? A liquid cooling solution is one of the most effective options for data closets, IT rooms and other confined spaces that would otherwise rely on a building’s HVAC system. One of the best is Rittal’s LCP DX 20kW – an enclosure cooling solution adaptable to a variety of applications and locations. The LCP DX provides 20kW of cooling capacity and is available in closed loop Rack and open loop Inline options. The closed loop configuration maintains rack temperatures completely independent of room conditions; the open loop option maintains a constant room temperature, cooling the rack equipment as well as other equipment that may be in the room.

LEARN MORE ABOUT OUR 20kW LCP RACK AND INLINE DX

The LCP DX 20kW is a server rack cooling solution with the features that make it ideal for repurposed spaces – and limited staff:

  • A small footprint
  • Easy to maintain (tool-less fan replacement; easy access electrical connections)
  • Precise climate control (set point temperature is maintained as heat loads vary)
  • Ongoing monitoring (remote notification)
  • Variable capacity (follow heat load variations from 5 to 20kW)

Learn more about your data center cooling options by reading our white paper, “Data Center Cooling: 4 Effective Types of Liquid Cooling.” In it you’ll find valuable information about why liquid cooling is becoming the go-to choice for data centers of all sizes, and 4 of the best options for different scenarios.

CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

The Factory of the Future, Today: How IoT-Enabled Climate Control Makes Plants Smarter

Automation is a target that many in the industrial sector are chasing. However, converting existing facilities into smart facilities can be a costly and time-consuming undertaking.

For a company to implement smart manufacturing, its machinery and equipment must be able to communicate with each other and across a network. Many in the industry are beginning to invest in steps toward automation through integrating sensors into their equipment and investing in IoT-ready machines and devices, even if they aren’t ready to put them online yet.

In order to fully integrate with IIoT (the Industrial Internet of Things) and the factory of the future, climate control units must also be brought online for remote monitoring and integration into IoT systems. For this, cooling units must either be replaced or retrofitted.

New Solution for IoT Connected Cooling: Retrofit

For many plant managers, the push towards automation means investing significant amounts of money in new connected devices. However, another option exists for enclosure cooling systems: Retrofit.

The practice of retrofitting your existing cooling systems for IoT connectivity wasn’t previously an option but using newly available adapters certain existing units can be connected. These adapters connect cooling via common plant protocols such as TCP/IP, OPC UA, Modbus an

Taking a retrofit approach allows all of your systems to “talk” to each other so you can ensure they are performing properly. Real-time monitoring of equipment enables alerts to be sent out, allowing you to get systems back online as quickly as possible to minimize costly downtime for your plant. Tracking data from cooling systems allows plant managers to confirm when equipment is running correctly, determine the hours in use and establish regular maintenance and inspections to keep cooling units running at optimal performance. When your climate products are running correctly, the rest of your sensitive equipment and controls can keep your plant smart.

When to Replace Rather than Retrofit

Retrofitting is the most cost-effective way to bring your climate control solutions online with your smart plant’s systems. However, retrofitting may not always be the best option depending on your current equipment. When should you replace cooling units rather than retrofit them?

  • If your equipment is too old. Assess the age of your equipment, if it is more than five to seven years old, consider upgrading to newer, more efficient and IoT-enabled equipment.
  • If your utility provider is offering incentives for installing more efficient equipment. Upgrade incentives vary based on timing and location, so if you’re considering an upgrade, check with your utility providers to see if there is a current or upcoming rebate program.
  • Was your equipment wasn’t specified appropriately in the first place? One of the most common mistakes when specifying climate control units is installing undersized units. If your current units aren’t performing as they should, consider upgrading.
  • If you’ve upgraded your drives and devices inside the enclosure but not your cooling unit. As drives and PLCs get smaller and smaller, plants will sometimes upgrade the contents of the enclosure, but overlook the climate control unit. If you can replace two drives with four or five, they may be more efficient than the older ones and less energy-loss, but the aggregate heat generated may have increased, meaning your climate solution may not be able to keep up.
  • If your equipment has failed. Obviously, if your unit has failed, it should be replaced rather than retrofitted.

The Rittal Solution for Retrofit

Rittal recently launched an adapter for its Blue e cooling units that, when installed, ensures the units can link up to smart condition monitoring and IoT systems. The adapter can be used to set up condition monitoring for up to ten cooling units in a master/slave arrangement. It is compatible with all wall- and roof-mounted NEMA 12, 3R/4, and 4X rated Blue e units that employ the Comfort Controller. Combining the IoT Interface with the IoT Adapter, Blue e cooling units may be integrated into higher-level systems. The whole system can be configured and commissioned via the web server– quickly, conveniently and without the need for any programming.

Learn more about the adapter for retrofitting your climate solutions for IoT, check out the brochure. To read more on IoT and climate control, visit IoT-enabled Climate Control is Changing the Game.


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Essential tips for Temperature Management in the Food Industry

Guest contributor:  Karl Lycett, Product Manager for Climate Control, Rittal

Food processing is a sector that demands very high standards of efficiency to meet daily production throughput targets.  Any unexpected breakdown of critical components which stops production lines can have a major impact, not just in terms of loss of output, but also unplanned maintenance.

Electrical componentry is protected by an enclosure which is designed to protect the equipment from the ambient environment and create a secure atmosphere in which the climate is maintained within the required parameters.

As the temperature rises due to the summer months or random heat waves throughout the year, these parameters can be breached. In turn, the overall life of the componentry within the enclosures can reduce and the probability of an unexpected system failure increases drastically.

Care needs to be taken when implementing climate control equipment to ensure it is suitable to handle the rigours of the environment in which it is situated.

Below are some key aspects to consider when reviewing your climate control solutions.

Is your solution right for the environment?

The type of product being processed on-site and/or the location of the equipment within the facility are likely to heavily influence your climate control solution.

  1. If the ambient temperature of your facility remains lower, year-round, than the desired enclosure internal enclosure temperature then fan-and-filter units and air-to-air heat exchangers can be very effective. They use the ambient air to remove heat energy from the enclosure, releasing it back into the environment.If the ambient temperature rises above the desired internal temperature then units with active cooling circuits must be used. Wall/roof-mounted cooling units and air-to-water heat exchangers include a refrigerant to remove the excess heat from enclosures and maintain the desired conditions.

    Already in 2018 we have seen unexpected jumps in average temperatures across the country, and this will only increase as we move into the summer months. These jumps, as I’ve indicated, are what put cooling equipment under the most strain, therefore reviewing existing equipment sooner rather than later can reduce the likelihood of unexpected breakdowns.

  1. Dusty or acidic contamination (e.g. flour or yeast/vinegar extracts) can interfere with switchgear and cause short circuits or a reduction in service life.

HD 2

Applying filter mats to fan and filter units will help, but if the environment is extremely contaminated you might be better off installing a cooling unit to ensure that the internal and external air-paths are exclusive thus ensuring contaminated air isn’t drawn into the enclosure.

Cleaning/Maintenance Regime

Establishing a regular inspection and cleaning of cooling equipment is very good practice.  For example, vacuum cleaning units with filter mats to remove any dust and debris which might choke the fan. The will mean the unit works harder for longer and also reduces its cooling capacity.

Cooling units must also be kept clean to maintain the highest standards of hygiene. Some will be cleaned daily with pressure washers and jet steam cleaners in which case use units which meet the required ingress protection rating desired for your site and purchase additional cowls or covers as needed.

Increasing Energy Efficiency = Reduced Costs

Many food production facilities work around the clock and with energy prices rising globally, it’s vital to get early warning of any potential issue which could impact on productivity or costs.

For example, unlike speed-controlled cooling devices, such as the new Rittal Blue e+ cooling units, conventional units start when the temperature inside the enclosure gets above set point (normally 35°C) and finish when the shutdown temperature of  30°C is achieved (at a typical hysteresis of 5K).  If the device does not reach the shutdown temperature it will continue to operate at full output, using large amounts of energy.  This is one good indicator that the unit is inadequate for the job and that too little cooling air may be getting to electrical components.

The best course of action in all instances is to undertake a survey of your existing cooling equipment utilising the points above.

HD 1

Rittal is happy to offer you a free RiAssure Cooling Inspection in which one of our trained representatives visits your site to provide you with honest, clear advice on your existing equipment and its suitability within the chosen environment/process.

We will then provide you with a short report which includes feedback on the next best steps forward for your installation, whether it is implementing a maintenance contract to prolong the life of existing equipment or the replacement of units that are undersized to improve performance and increase the energy efficiency of your site.

Learn more:  https://www.rittal.com/us-en/content/en/start/


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Balancing the Value of Air-to-Air and Air-to-Water Heat Exchangers

Guest contributor: Eric Corzine, Product Manager Climate Control, Rittal

Heat exchangers provide highly efficient cooling for electrical components. As energy costs increase, they are getting more consideration by system designers. Before making a design decision between air-to-air and air-to-water heat exchangers,  it is important to weigh installation considerations and use-cases. Here, we have provided an overview of each technology to help you determine which can best impact your equipment and your bottom line.

Air-to-Airsirair

Air-to-air heat exchangers are the most common type of exchangers. They work by utilizing the difference between the hotter internal temperature of an enclosure and the cooler, ambient air temperature. Engineers can implement air-to-air exchangers in a variety of industrial environments, including food and beverage, waste and wastewater, and automotive.

Air-to-air exchangers can utilize existing airflow patterns, through convection or forced air, and do not require additional accessories or equipment. The technology can utilize the airflow within an enclosure or can connect to existing ductwork and HVAC systems.

There are some limitations to air-to-air heat exchangers, particularly in the climates they could be installed. For instance, if the difference between indoor and outdoor temperatures is to great then the effectiveness of the exchangers can be significantly reduced. Recent technology upgrades, however, have made air-to-air exchangers functional even in climates that reach temperatures of -13°F.

These factors make air-to-air heat exchangers useful in applications where plumbing for liquid cooling would be difficult to install, and where existing air flow patterns and equipment layout allow for effective cooling. Often, this means situations with moderate thermal loads. HVAC engineers can install them quickly as well, which reduces setup time and costs. However, they are still less efficient compared to air-to-water exchangers because air is not as effective at transferring heat as water.

Air-to-Waterairwaterdownload (6)

Air-to-water heat exchangers use the same principle of temperature differential to provide heating or cooling, however, they alter the temperature of air by forcing it across water coils.

Because of the efficient heat transfer capabilities of water, they can help reduce energy use and utility costs significantly. This is especially useful in situations with large thermal loads, such as IT mainframe applications or an automotive manufacturing environment where water is already available.

One of the drawbacks of air-to-water heat exchangers is the need to pipe water to the unit. The technology requires plumbing and a reliable water supply or recirculation system, which often means pumps, valves, and other accessories.

These plumbing concerns often mean higher installation costs, so engineers need to balance the initial cost with the expected savings over the lifetime of the exchanger. Overall, air-to-water exchangers are useful for high-demand, energy intensive applications.

Making the Right Choice

It is important to consider the right exchanger for your specific climate control situation. The ultimate decision will balance installation and operational costs, target cooling capacity and thermal loads.

Air-to-air exchangers can get up and running quickly and engineers can integrate them into many different kinds of applications easily. Air-to-water exchangers deliver better efficiency and can suit more energy-demanding applications, but they require plumbing and water supplies, which may not always be available. The ultimate choice, then, should consider these factors and engineers should thoroughly research both types of exchangers to understand which one will best suit their application.

Learn more about climate control at Rittal.com

About Us


CMA/Flodyne/Hydradyne is an authorized  Rittal distributor in Illinois, Wisconsin, Iowa and Northern Indiana.

In addition to distribution, we design and fabricate complete engineered systems, including hydraulic power units, electrical control panels, pneumatic panels & aluminum framing. Our advanced components and system solutions are found in a wide variety of industrial applications such as wind energy, solar energy, process control and more.

Considerations for Industrial Enclosure Cooling

Guest contributor, Eric Corzine, Product Manager – Climate Control, Rittal

Data Centers and server racks run hot. Protecting the technology backbone of your company means managing air flow, temperature, energy consumption and cooling technology.

Rittal, the world’s largest enclosure manufacturer and a leader in thermal management of electrical, electronic and IT equipment, offers some important guidelines to ensure your equipment stays in optimum condition. The following tips are based on decades of practical experience in the use of enclosures climate control solution in industrial environments. By ensuring sufficient planning and maintenance guidelines are in place, control cabinets and electronic enclosures can be last longer and be more energy-efficient.

7 Considerations for More Efficient Enclosures

1. Devices and electrical components must be installed in the enclosure in accordance with the manufacturer instructions. Storage space for necessary documents and circuit diagrams should also be taken into account during the planning phase.

2. When arranging the components in the enclosure, verify that the cooling air flows from top to bottom. You can ensure this in the planning stages by properly routing the air flow away from the electronic components. When roof-mounted units are used, particular attention needs to be paid to the air flow from blowers built into electrical components. The use of air duct systems is advisable in the case of roof-mounted cooling units

Proper Enclosure Heat Dissipation

3. There should be sufficient space for air to flow between the parts and electrical components.

4. Air intake openings of climate control components must not be obstructed by electrical devices equipment or cable ducts. With all climate control solutions, the cold air should always be routed close to drive units. This is where the greatest heat losses occur. This arrangement ensures that the cold supply air from the climate control solution optimally cools the drive units without losses.

Air intake design for cooling enclosures

5. Internal temperatures of the enclosure should always be set to +35◦C. There is no technical justification for setting the temperature any lower. If the temperature inside the enclosure is any lower, condensation will be significantly increased.

6. Institute a systematic cleaning cycle. As most climate control components are used in industrial environments external filters of the climate control must be maintained to ensure long-lasting operation.

7. Ensure the correct filters are used for the industry application.

PU Filter for Industrial Enclosure Cooling

In heavily dust-laden atmospheres, PU filters should be used and replaced on a regular basis. Cooling units with Ri Nano coating typically do not need a dust filter.

Metal Filter for Enclosures

If the air is oil-contaminated, use metal filters. These separate the oil condensate from the air and can be cleaned with appropriate detergents

Textile Enclosure Lint Filter

In the textile industry, the use of lint filters is recommended.

Fiber Mat Filter

Chopped fibre mat filters are not suitable for cooling units.

CMAFH Rittal Resources:

Rittal Wallmount Program

Rittal Enclosure and Process Cooling handbook

Rittal Innovations 2016

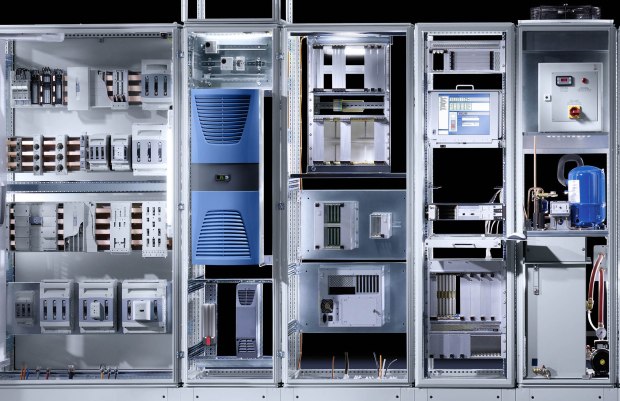

The Future of Cooling Technology in Industrial Enclosures

by Eric Corzine, Product Manager, Climate Control at Rittal

As industrial processes scale, the threats and challenges of cooling the racks of automation equipment increase exponentially. Sophisticated, sensitive electronics and drives are the backbone of many industrial systems. This equipment is often placed inside enclosures to protect it from environmental influences such as temperature, moisture and contaminants like corrosive vapors and dust. If these are not prevented, electronic components will inevitably fail, eventually leading to the shut-down of entire production systems. The failure of a production system can add up to losses for an operation.

What will the future look like?
The single most important environmental factor to manage in industrial enclosures is temperature.  Relative to each individual component, the heat of electronic components has increased significantly in recent years. At the same time, the density inside control cabinets has increased dramatically, resulting in a 50 – 60% increase in heat in the enclosures.

With the advent of microelectronics and new electronic components, the requirements for professional enclosure construction and heat dissipation have evolved dramatically over the last few years. Modern enclosure climate control systems must take these challenges into account, offering the best technical solution while guaranteeing optimum energy efficiency. If heat is not managed properly and the maximum permitted operating temperature is exceeded, the service life of these components is halved and the failure rate is doubled.

Trouble-free operation and functioning of production lines is heavily dependent on how the heat generated by electrical and electronic components is dissipated from the enclosure to the ambient environment. We distinguish three different types methods of heat transfer:

  • Thermal radiation
  • Thermal conduction
  • Convection

In the case of enclosures and electronic housings, we are mainly concerned with thermal conduction and convection. With thermal radiation, heat is passed from one body to another in the form of radiation energy, without a medium material, and plays a minor role here.

Whether we are dealing with heat conduction or convection depends on whether the enclosure is open (air permeable) or closed (air-tight). With an open enclosure, the heat (heat loss) can be dissipated from the enclosure by means of air circulation, i.e. thermal conduction, from inside to outside and is typically in a controlled environment such as data centers. However, if the enclosure has to remain closed due to harsher conditions, the heat can only be dissipated via the enclosure walls, i.e. through convection. Depending on the amount of heat loss of the components, these methods may not sufficiently cool the equipment and a climate control product may be required.

Identifying the proper cooling device depends upon the differences between the ambient temperature (Tu) and the desired enclosure internal temperature (Ti).

An additional factor to consider when choosing a means to cooling is the environment in which the enclosure is installed and the ingress protection (IP) rating required.  Each climate product has corresponding IP ratings:

Other innovative, hybrid cooling technologies have been developed that rely upon two parallel cooling circuits working together depending on the temperature differential. An integral heat pipe dissipates heat from the enclosure when the ambient temperature is below the setpoint, providing passive cooling. Active climatization is achieved when the compressor’s cooling circuit is engaged and provides cooling via speed-controlled components for demand-based cooling. Combining the two circuits reduces temperature hysteresis and provides more precise cooling. Not only is energy consumption far less than with conventional technology, but the improved temperature stability leads to longer service life of both the components within the enclosure and the cooling unit itself.

The reliability of electrical and electronic components in an enclosure can be put at risk not only by excessively high temperatures, but also by excessively low ones. The enclosure interior must be heated, particularly to prevent moisture and protect against frost. It is also necessary to prevent condensation within the enclosure. The latest generation of enclosure heaters has been developed with the help of extensive Computational Fluid Dynamics (CFD) analyses. The positioning of the heater is of fundamental importance for even temperature distribution inside the enclosure. Placement of the heater in the floor area of the enclosure is recommended in order to achieve an optimum distribution of temperature and hence efficiency. Thanks to positive temperature coefficient (PTC) technology, power consumption is reduced at the maximum heater surface temperature. Together with a thermostat, this results in demand-oriented, energy-saving heating.

Smarter, intuitive, and more efficient designs will need to be a staple no matter what setting the enclosure is in.  Designers will need to take careful consideration in the initial planning stages of projects, ensuring that the appropriate cooling technology is incorporated into designs.
